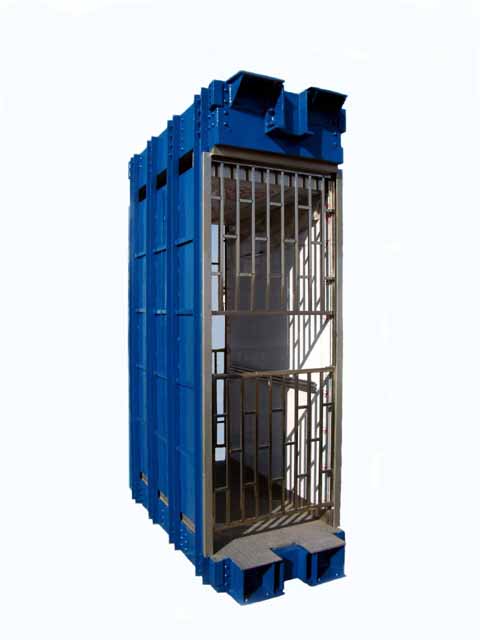

HUANG YUCHUAN Coal Mine of Shenhua Yili Energy Co. Ltd. in Inner Mongolia operates a service shaft equipped with a large cage - counterweight hoist for material hoisting and men-riding and a transportation cage - counterweight hoist for men riding.
In 24 October, 2008, XCMSE was awarded a contract of two off big cages by SIEMAG-TECBERG for Huang Yuchuan Coal Mine of Shenhua Yili Energy Co. Ltd.
The double deck cage can be used for the
following duties:
■ Hoisting of rubber-wheel cars up to the max.
specified payload
■ Hoisting of platform cars with large loads up
to the max. specified dimensions and the
max. specified payload
■ Hoisting of large (long) equipment on the
bottom frame
■ Men-riding with the max. allowed number of
persons for each deck
■ The rescue of people from underground
■ Shaft inspection on head frame of the cage.

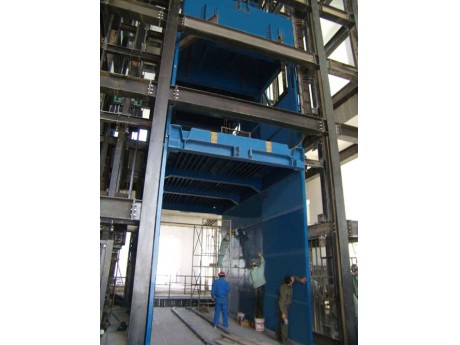

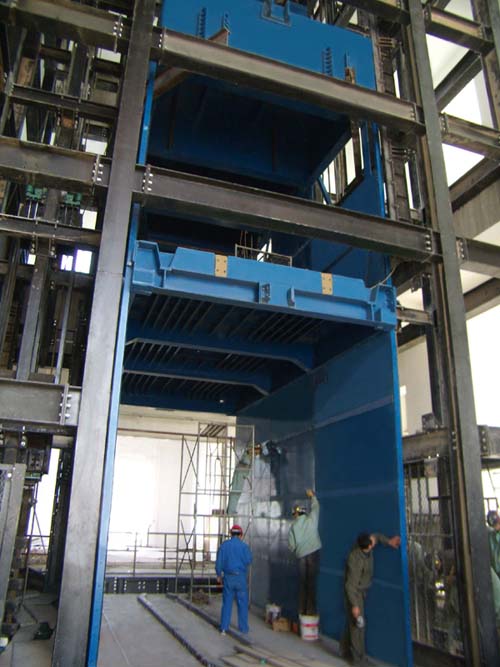

Huang Yuchuan large cage is the first large cage which was ever manufactured in China.
|
|
Typeofcage: |
Doubledeckcage |
Nominallength: |
7,700mm |
Nominalwidth: |
3,800mm |
Totalheight(without
protectionroof): |
11,100mm |
Totalheight(with
protectionroof): |
13,580mm |
cagesafetyfactorfor
materialhoisting: |
>10 |
cagesafetyfactorfor
men-riding: |
>13 |
clearheightupper
deck: |
3,400mm |
clearheightlower
deck: |
4,500mm |
Distanceofguide
rails: |
7,890mm |
Weightofcage(incl.
attachments): |
47.8t |
|
