Datong Coal Mine Group Co., Ltd. is one of the leading producers of hard coal in China. The company, which is located in Shanxi province, extracted 122 million tons of coal in 2008. The Majialiang mine alone, which is near Shuozhou and around 140 kilometers to the south-west of Datong, has an annual production capacity of approximately twelve million metric tons of coal.
In 28 August, 2009, XCMSE was awarded a contract of two off big skips c/w head and tail rope attachments by ABB(CHINA) for Majialiang Coal Mine of Datong Coal Mine Group.

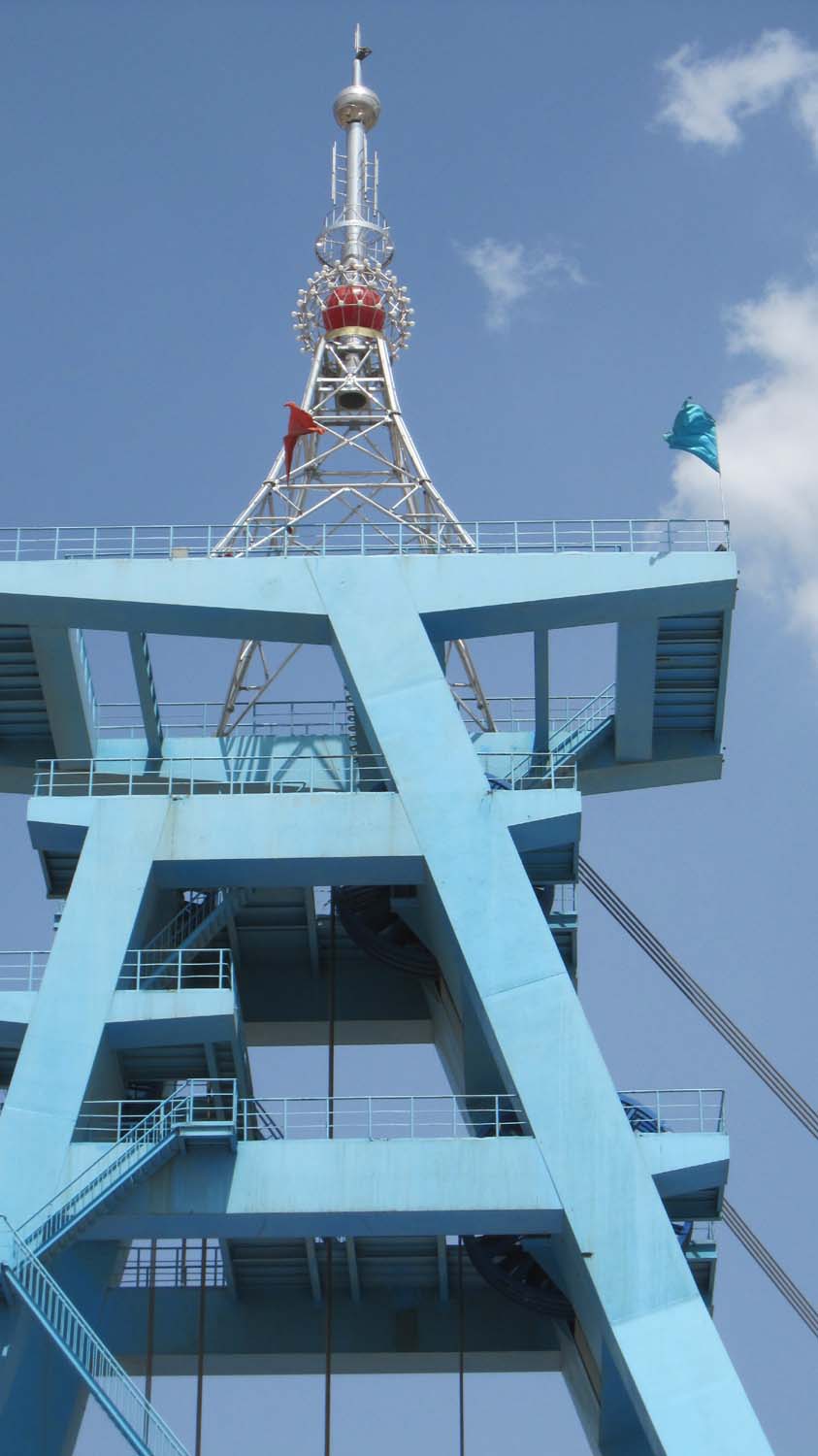

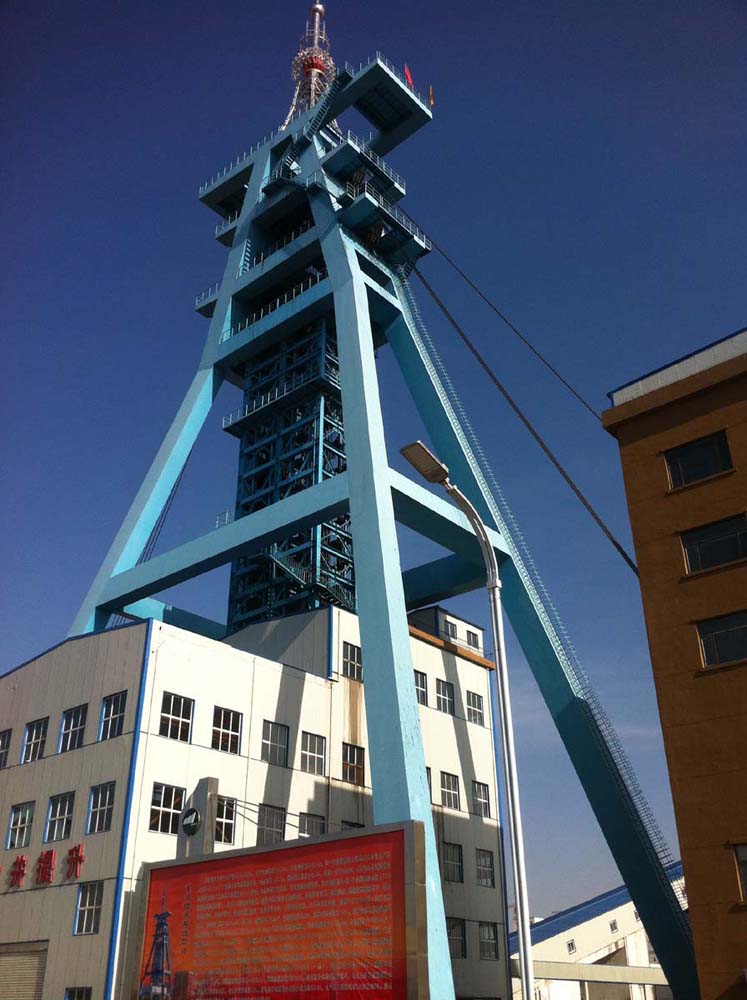

The mine operates a production shaft and a service shaft. The diameter of production shaft is 9 meters. Production shaft is equipped with two pairs of 45t skips, mainly used for hoisting rough coals.
|
|
|
Nominal payload:
|
45 t
|
|
Capacity:
|
49.5 m3
|
|
Cross-section of the skip:
|
3080mm × 1500 mm
|
|
Deadweight of the skip
(incl. head & tail rope attachments and guide rollers):
|
72 t
|
|
Cross-section of the guide rail:
|
220mm × 220 mm
|
|
Distance bet. guide rails:
|
3200 mm
|
|
Type of head rope attachment:
|
XSZ400
|
|
Type of tail rope attachment:
|
XWB260(B)
|
|
Max. hoisting height:
|
570mm
|
|
Method of skip fixation:
|
Corner guide shoes
|
|
