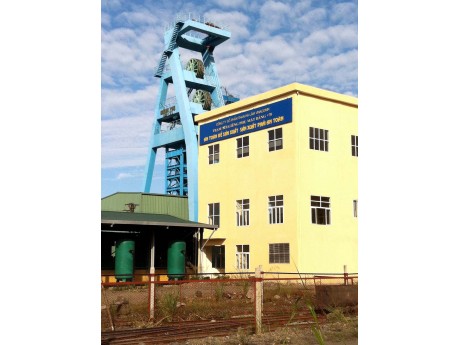

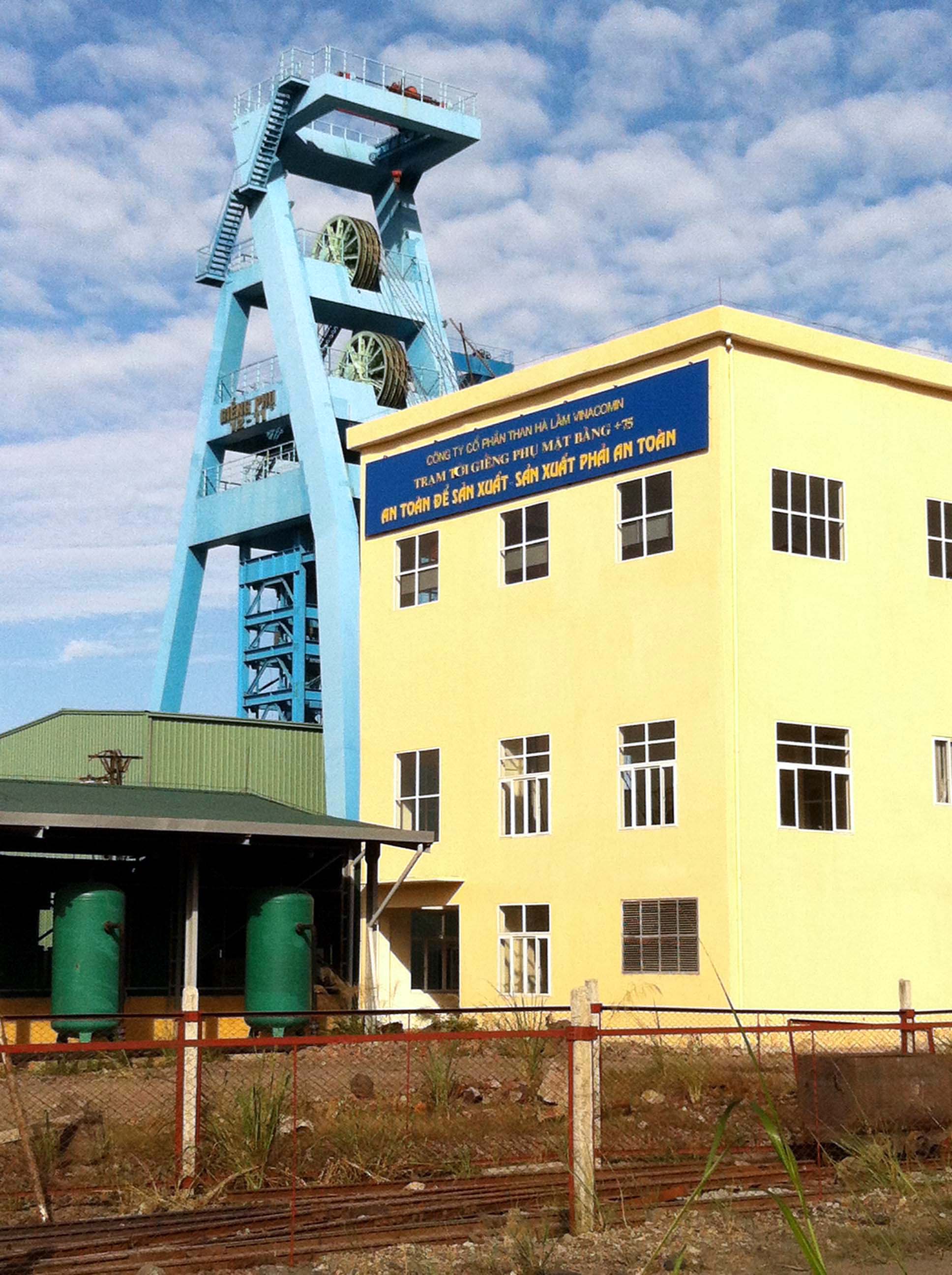

The designed production capacity of Helin Coal Mine of Vietnam Coal and Mineral Industry Group (TKV) is 2.4 Mt/a. The shaft infrastructure comprises a main shaft with a diameter of 5m sunk to a depth of 420m and a service shaft with a diameter of 6.5m sunk to a depth of 405m, as well as a ventilation shaft with a diameter of 5m sunk to a depth of 399m below surface.
In September 2010, XCMSE was awarded a contract by China Coal No.5 Construction Co. Ltd. to manufacture and deliver the following equipments as its subcontractor:
■ Three off 16t skips c/w suspension devices of head
rope and balance rope
■ Guide rollers, dumping scrolls, loading devices
■ Four off cage c/w suspension devices of head rope
and balance rope
■ Guide rollers, turnout switch mechanism
■ Cage c/w suspension devices and guide rollers,
safety catch for ventilation shaft
■ Charging system (comprises swing platform, mine
wagon arrester, safety door, explosion door) for
ventilation shaft
■ Charging system for service shaft at shaft mouth
■ Charging system for service shaft at shaft bottom
|
|
|
Skip
|
|
|
Outline dimension (l×w×h):
|
2.73 m×1.55 m×11.3 m
|
| Total weight: |
16 t
|
|
Effective volume:
|
17.6 m3
|
|
Number of steel rope:
|
4
|
|
Dumping & loading type:
|
same side
|
|

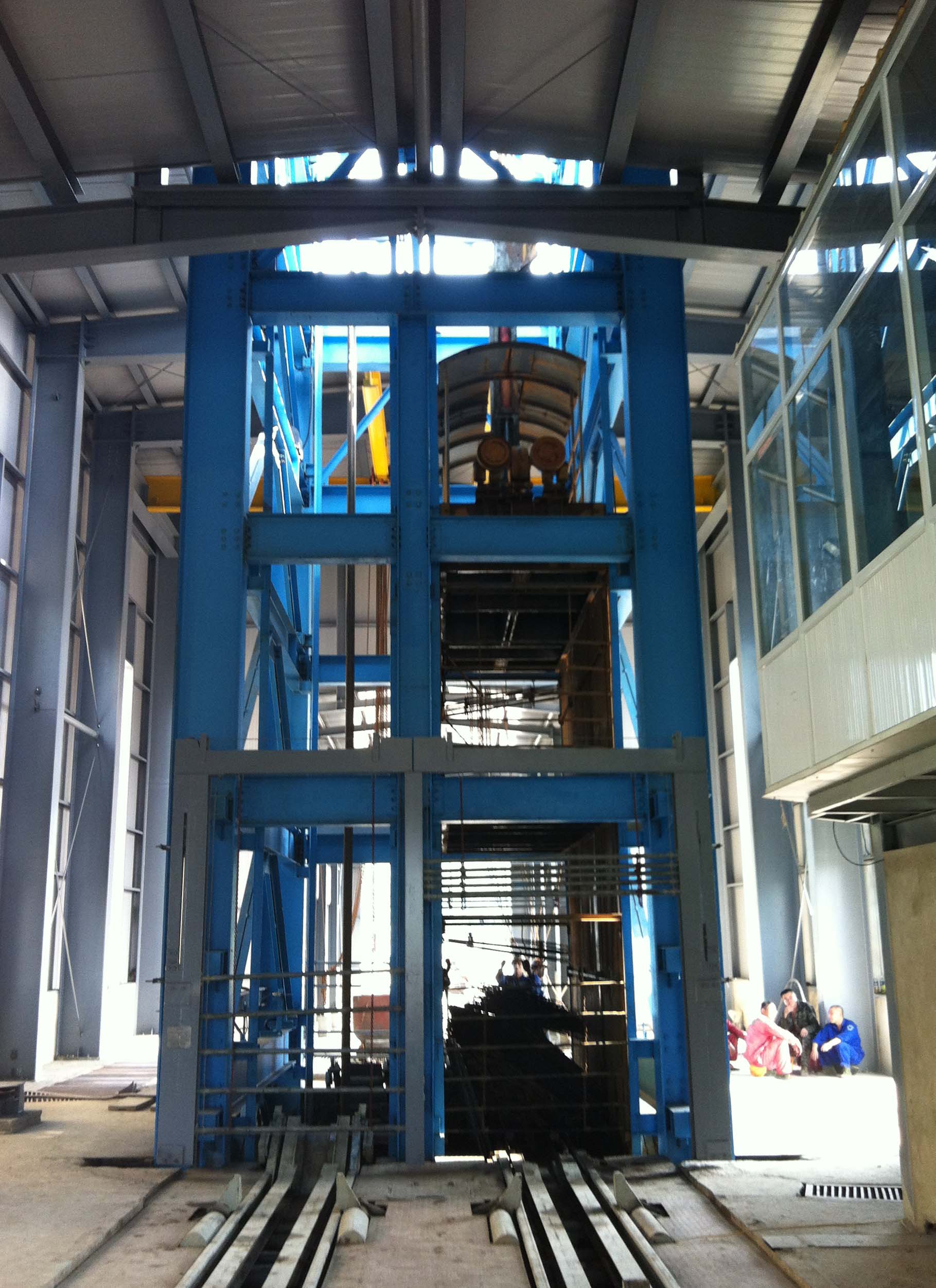

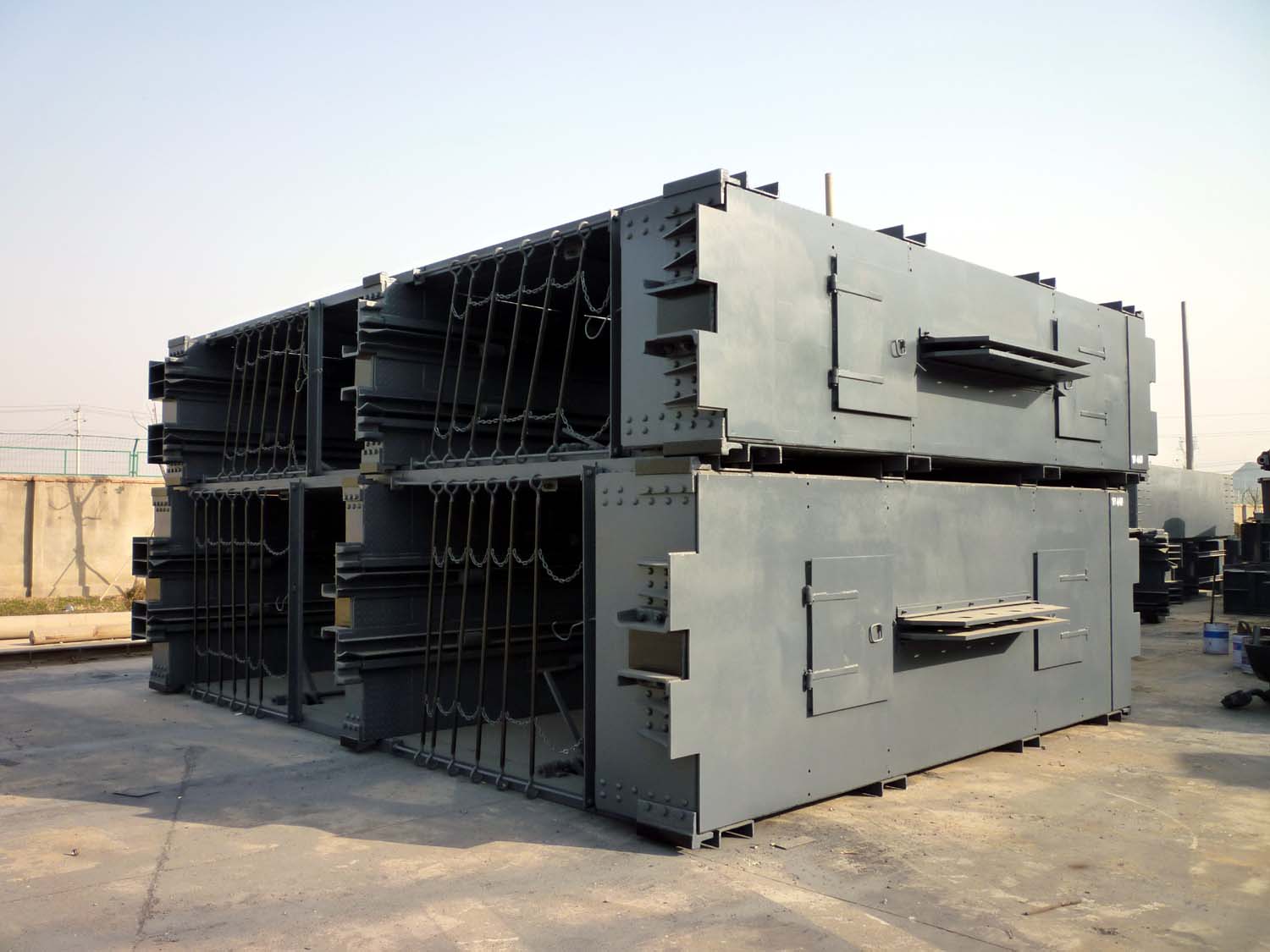

Wide cage for service shaft
|
|
|
Outline dimension (l×w×h):
|
5.1 m×1.67 m×13.6 m
|
|
Max. loading capacity:
|
570 kN
|
|
Men-riding capacity:
|
56 persons
|
| Weight (incl. attachments): |
21 t
|
|
Narrow cage for service shaft
|
|
|
Outline dimension (l×w×h):
|
5.1 m×1.2 m×13.6 m
|
|
Max. loading capacity:
|
570 kN
|
|
Men-riding capacity:
|
54 persons
|
|
Weight (incl. attachments)
|
21 t
|
|
Single deck cage for ventilation shaft
|
|
|
Outline dimension (l×w×h):
|
2550 mm×1100 mm×2690 mm
|
|
Applicable type of mine wagon:
|
MGC1.1-6
|
|
Men-riding capacity:
|
10 persons
|
|
Weight:
|
3.3 t
|
|
